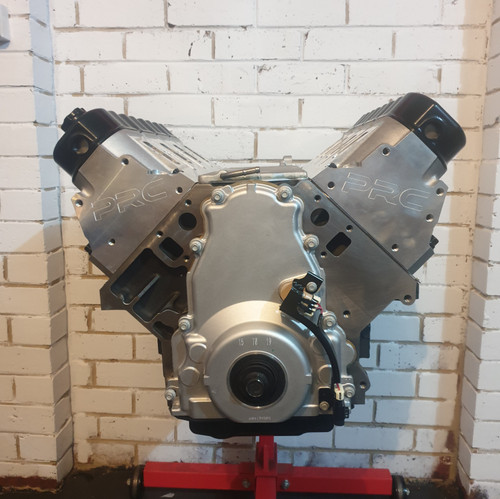

Dart LS Next SHP 427ci LS3 Stroker | Long Engine | Low Compression
DART SHP 427ci Forced Induction LS3 Stroker Motor
The key to a quality build is starting with the right foundation, That is why we only use the very best for our line of Race Engines.
Utilising the DART LS Next SHP (Special High Performance) block, LSX Performance Parts has put together your new premium race engine with proven, All American performance components.
Your new Dart 427ci engine is designed specifically to suit big horsepower
Your New DART LS Next SHP 427ci Engine Features
- Dart SHP LS Next 4.125" Inch Cast Iron
- Callies Forged 8 CCW Stroker Crank | 4.00" Inch | 58x Reluctor
- Callies Compstar Forged H beam Conrods | 6.125" Inch
- Carillo Bullet Dish Top Pistons Set | 4.125" Inch
- ACL Race Series Conrod Bearings
- ACL Race Series Main Bearings
- Coated Cam Bearings
Camshaft & Valvetrain:
- Custom Grind Hydraulic Roller Boost Stroker Camshaft
- Billet Timing Chain Set
- Melling High Volume Oil Pump
- LS7 Lifters Set
- Lifter Guides & Bolts
- MLS Head Gaskets Set
- Chromoly Pushrods Set
- LS7 Rocker Arms
- Rocker Trunnion Upgrade | Bush Bearing
- GM LS3 Port Cylinder Heads
- Tremaniac Racing CNC Ported Intake Runners
- Tremaniac Racing CNC Ported Exhaust Ports
- Tremaniac Racing CNC Ported Combustion Chambers
- Machined Deck Surfaces
- PAC Racing Dual Valve Spring Kit
- Titanium Retainers
- Stainless Steel Intake Valves | 2.165" Inch
- Stainless Steel Exhaust Valves | 1.600" Inch
- ARP Cam Bolts
- ARP Harmonic Balancer Bolt
- ARP Oil Pump Bolts
- ARP Head Stud Kit
- ARP Main Stud Kit
- Oil Pick Up Support Bracket
- LSX Billet Valley Plate
- GM LS Timing Cover
- GM LS Rear Plate
- Optional LSX Billet Rocker Covers
- Block Deck Machined To Zero Deck Height
- Cylinder Bores Machined & Torque Plate Honed
- Align Hone Main Tunnel
- De-Burred Oil Galleries
- Stroker Clearance Bores
- Balance Rotating Assembly
- Blueprinted Bearing Clearances
- Dummy assembly
- Final assembly
This motor is purpose built for serious horsepower featuring internals the highest quality engine internals to ensure a reliable street/race engine combination.
This combination features our latest design hydraulic camshaft (which specs will be provided to the buyer).
The Short motor is assembled using custom CP Carillo Bullet pistons which feature CNC machined piston crown & straight wall gudgeon pin upgrade.
The cylinder heads are 100% CNC Ported by Tremaniac Racing here in Aus by Australia's multiple time Pro Stock Champion.
The motor can have Engine Dyno & Ring Bed In Process completed so it is ready to drop in and fire up.
